Statements

Statements are function bodies built as a vertical list of visual steps instead of written as code. Each step is a card ("set this value", "call that function", "if this, then…") and the cards run top to bottom. For most handlers, this is all the programming a page needs.

Where Studio offers it

Anywhere a function body appears, a Statements / Code toggle picks the representation:

• A Function entry's Body in the Data panel .

• An Inline code event handler in the Inspector's Logic tab ( ⌘⇧3 ).

Statements is the structured editor described here; Code is a JavaScript text body. See Code editing .

Add steps

Every list of steps ends in a + Add statement picker with five kinds:

• Set state : store a value in a state entry. This is the everyday step: the card is a one-step formula whose operator is an assignment ( = , or += and friends for read-modify-write), whose target is the entry, and whose value can be anything a formula can produce.

• Call function : run another function from your state, with rows for the arguments to pass it.

• If / Else : run different steps depending on a condition.

• Switch : pick one of several branches by matching a value.

• Dispatch event : send an event out of a component, so the page using it can react.

Each card has a header naming its kind, a delete button, and a drag handle (⠿). Drag cards to reorder them within their list.

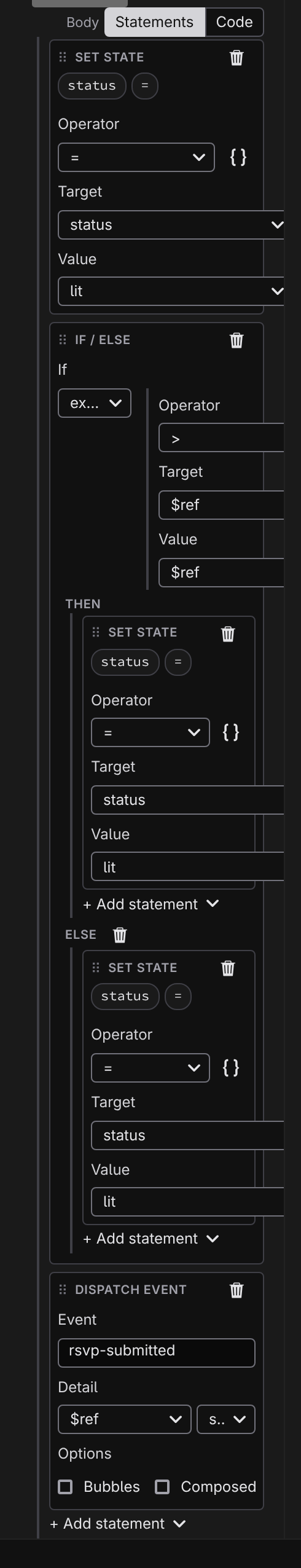

Branch with If / Else

An If / Else card holds:

1. An If row holding the condition, written as an operand: a state value, or a nested comparison formula.

2. A Then lane holding an indented list of steps with its own + Add statement picker, run when the condition holds.

3. Optionally an Else lane. Click + Add else to add it, or the remove button on the lane to drop it.

Lanes nest: a step inside Then can itself be an If / Else or a Switch .

Branch with Switch

A Switch card matches one value against several cases:

1. Switch on : the value to examine.

2. One lane per case, each labeled with the value it matches (edit the label field to change it). + Add case appends another.

3. A Default lane for when nothing matches.

Dispatch an event

A Dispatch event card sends a custom event from a component, the counterpart of the Emits list on a function in the Data panel:

• Event : the event's name. In a component whose functions declare emitted events, this is a combo box offering the declared names.

• Detail : the data to send along, as an operand (a state value, a literal, or a formula).

• Options : Bubbles and Composed checkboxes controlling how far the event travels.

Pages using the component can then bind that event in their own Logic tab and read the payload as event#/detail .

Next

• Bind a statement-bodied function to a click in the Logic tab

• When a body outgrows steps, switch to Code editing

• The formula vocabulary inside each step: Formulas and expressions
