Connections

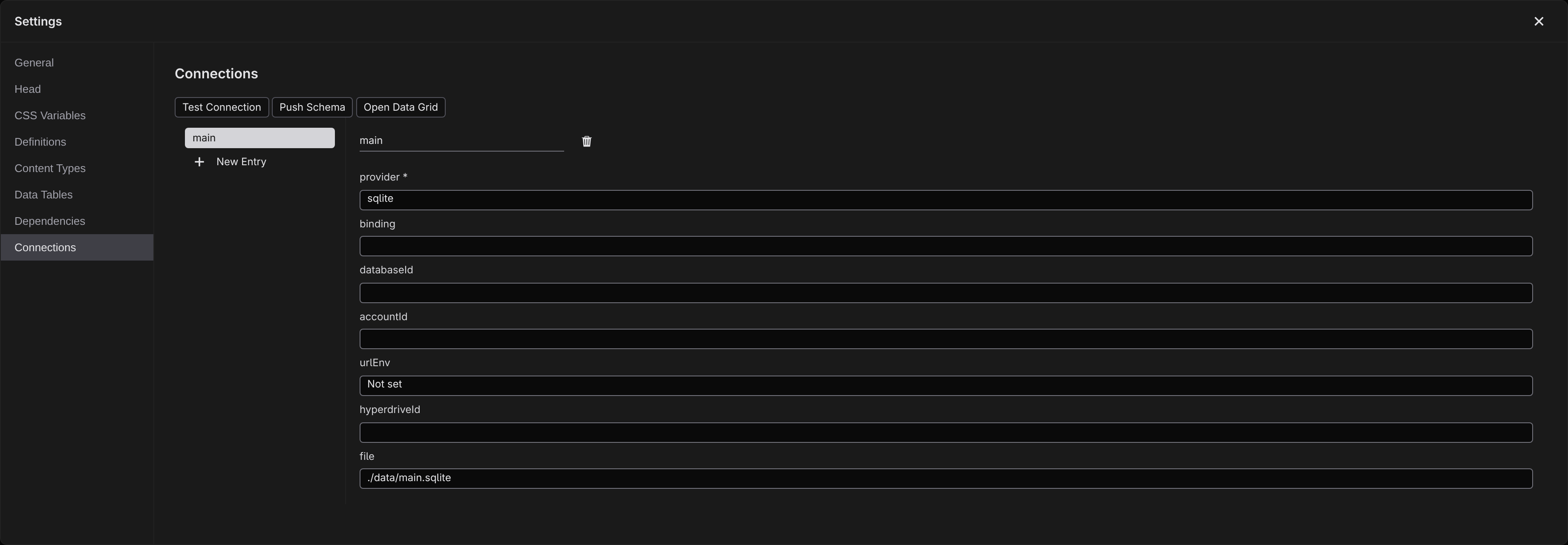

A connection names a database your project talks to. Most sites need exactly one; you can add more if, say, orders and analytics live in different places. Open the Settings gear at the bottom of the activity bar, then Settings > Connections : your connections are listed on the left, and selecting one opens its form on the right.

Add a connection

1. Click New Entry at the bottom of the list.

2. Type a name — main is a fine first choice — and click Create .

The new connection starts on the sqlite provider: a database file inside your project, no installation and no account. If that's where you want to stay, you're done — the file is created the first time the database is touched.

To use a different backend, change the provider field to one of the ids below. The form is generated from the provider's own settings, and every field carries its explanation.

SQLite — a file in your project

The zero-setup option, and the local stand-in the others build on.

• file — where the database file lives, relative to the project root. Leave it empty for the default, .jx/data/<name>.sqlite .

Cloudflare D1 — provider d1

Cloudflare's hosted SQLite, for sites deployed to Workers or Pages (see Publish to Cloudflare ):

• binding — the name your deployed site reaches the database under.

• databaseId — the database's UUID from the Cloudflare dashboard. An identifier, not a secret.

• accountId — your Cloudflare account id; leave it empty to use the CLOUDFLARE_ACCOUNT_ID environment variable.

While you develop, a D1 connection is stood in by a local SQLite file at .jx/data/<name>.sqlite — you build and test against your own machine, and the real D1 database is only touched when you push the schema to it or the deployed site runs. Reaching real D1 from outside a deployed Worker uses Cloudflare's API and needs a CLOUDFLARE_API_TOKEN value in your secrets.

Supabase — provider supabase

A hosted Postgres service:

• urlEnv — the database connection URL. This field is a secret field : paste the URL from your Supabase dashboard and Studio stores the value in the secret store, keeping only the environment-variable name it's filed under (the field then reads "Stored as …"). See below.

• hyperdriveId and binding — for sites deployed to Cloudflare Workers, the Hyperdrive configuration that fronts the Postgres connection there. Leave both empty otherwise.

Names on file, values in the vault

Nothing secret is ever written into your project: connection entries record identifiers and environment-variable names only. When you paste a value into a secret field, Studio saves it under a name derived from the connection — the URL of a connection called main becomes MAIN_URL — and locally that lands in the git-ignored .dev.vars file. The value is never shown back and never leaves the machine it's stored on. The full story, including what deployed sites use instead, is in Auth and secrets .

Test a connection

Select a connection in the list and click Test Connection in the action row. Studio asks the backend to run a minimal probe query against that database and reports beside the buttons — "main: connected", or the error that came back (an unreachable host, a missing secret, a bad URL). The button is disabled until a connection is selected.

With a connection selected, Push Schema in the same row is scoped to just that connection — table schemas and pushing are covered in Data tables .

Next

• Data tables — define what's in the database

• Auth and secrets — where the secret values actually live
