Data tables

A data table is like a content type for live data: a name, a set of fields, and the connection its rows are stored in. You define tables here; Push Schema then creates them in the actual database. Open the Settings gear at the bottom of the activity bar, then Settings > Data Tables — tables on the left, the selected table's editor on the right.

Create a table

1. Click New Entry at the bottom of the table list.

2. Type a name — "Comments" becomes comments — and click Create .

The new table starts empty, readable by everyone and writable by no one. First pick its connection — a dropdown of the entries from Connections .

Build the fields

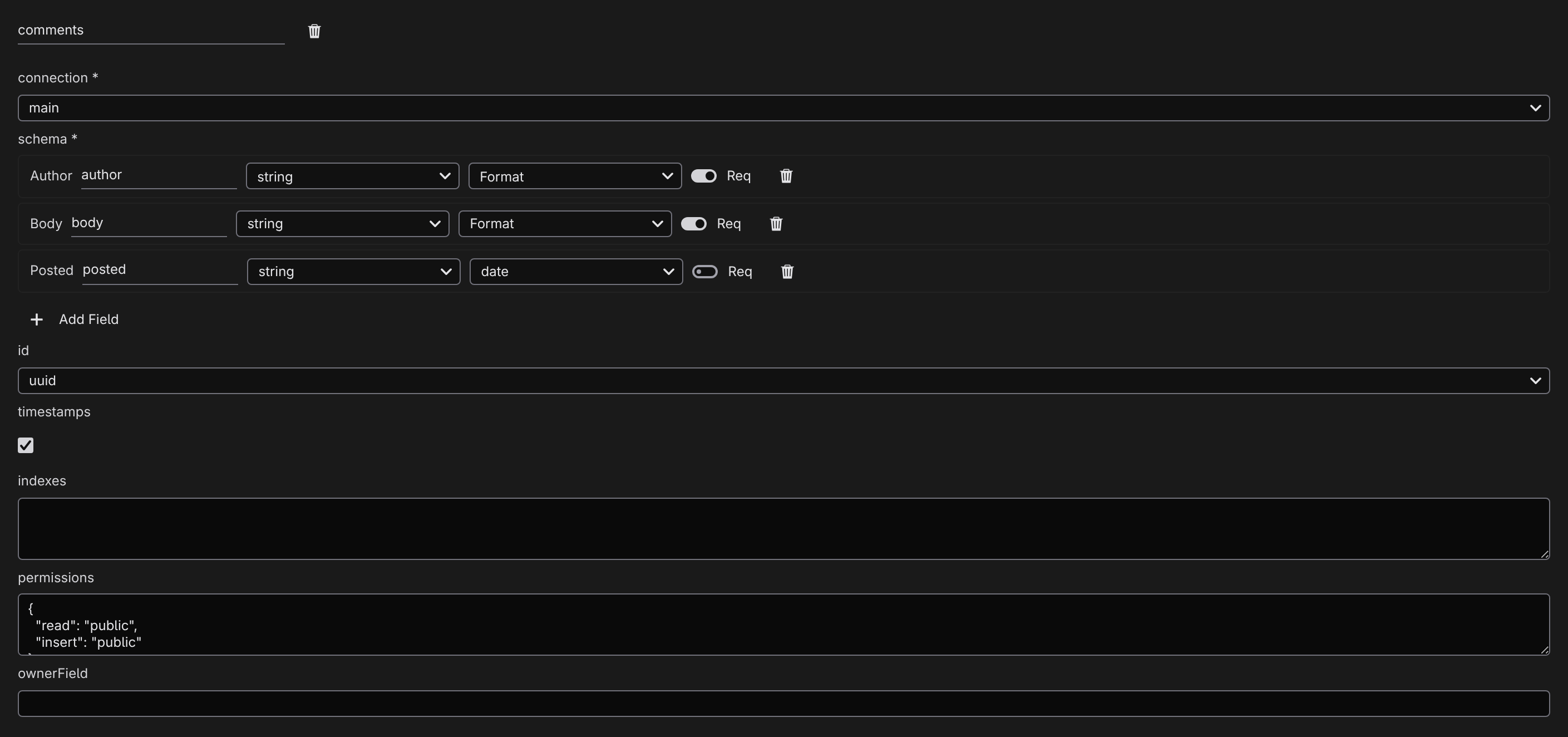

The schema editor is the same visual field builder as content types : each field has a name, a type (string, number, boolean, array, object, reference), an optional format for string and array fields, and a Req toggle. Required fields must be provided whenever a row is inserted.

A reference field links a row to something else — its Target picker lists your content types, and the row stores the target entry's id. How references resolve is the same story as content relationships .

Table options

• id — how rows are identified: uuid (random text ids, the default) or integer (1, 2, 3…).

• timestamps — on by default; every row gets created_at and updated_at columns the server maintains for you.

• indexes — column names to index for faster lookups; an inner list makes one composite index.

• permissions — who may do what, one rule per action ( read , insert , update , delete ). Rules are public (anyone), none (no one), authenticated (any signed-in user), owner (the row's owner), or role:<name> . Defaults are read public and every write none — nothing is writable until you say so. Every rule beyond public and none needs the auth extension; without it those actions are simply denied. The rules are explained in Auth and secrets .

• ownerField — the column that records which user a row belongs to; required for owner rules, and stamped automatically on signed-in inserts.

Push the schema

Defining a table describes it; pushing creates it. Click Push Schema in the action row:

1. Studio first compiles a plan — a dry run, nothing touched yet — and shows it as a list of steps: tables to create, columns to add, indexes, junction tables, and (with the auth extension) its account tables. Warnings appear below the steps. If everything already matches, the dialog says "Nothing to push — the schema is up to date" and there is no apply button.

2. Click Apply to execute the plan, or Cancel to back out. The dialog then reports "Schema applied." — or the errors, with nothing half-done claimed.

From the Data Tables section a push covers every connection; from the Connections section, selecting a connection first scopes the push to it.

Pushes are additive only : they create missing tables and columns and never drop, rename, or retype anything that exists. Removing a field from a schema leaves its column (and its data) in place — the plan notes such drift as a warning instead of destroying data. This makes pushing safe to run repeatedly.

A terminal or CI can push too: jx db push applies the same additive rules and takes the same --dry-run flag — see the CLI reference . Two differences matter. The CLI pushes the tables you define here and nothing else, so the auth extension's account tables come only from the button above. And the CLI talks to each connection exactly as declared, while the button goes through Studio's local backend — so for a Cloudflare D1 connection, which is stood in by a local SQLite file while you develop, jx db push is what creates the tables in the real D1 database.

Using tables from pages

Rows never pass through your project files — pages talk to the tables live. In the State panel , the connector's sources appear in the + Add… picker alongside the built-in data sources :

• Table query — a list of rows. filter and sort take the same rules as a content collection query; limit and offset page through a longer list; include names reference fields to expand, so a query on comments can come back with each row's linked post filled in — the whole row, not just its id — and to-many references expand into arrays the same way.

• Table entry — one row by id . The id can be a fixed value, a expression, or the current route's parameter, which is how a detail page like pages/posts/[id].json fetches exactly the row its URL names.

• Table insert , update , and delete — write actions, made to be wired to a form's submit event. After a successful write, every query on the page refreshes itself.

Filtering, sorting, and paging all happen in the database rather than in the browser, so a query with a limit fetches only that many rows.

To see and fix the rows by hand, open the Data grid .

Next

• Data grid — browse, insert, and edit rows

• Auth and secrets — make permission rules beyond public work
