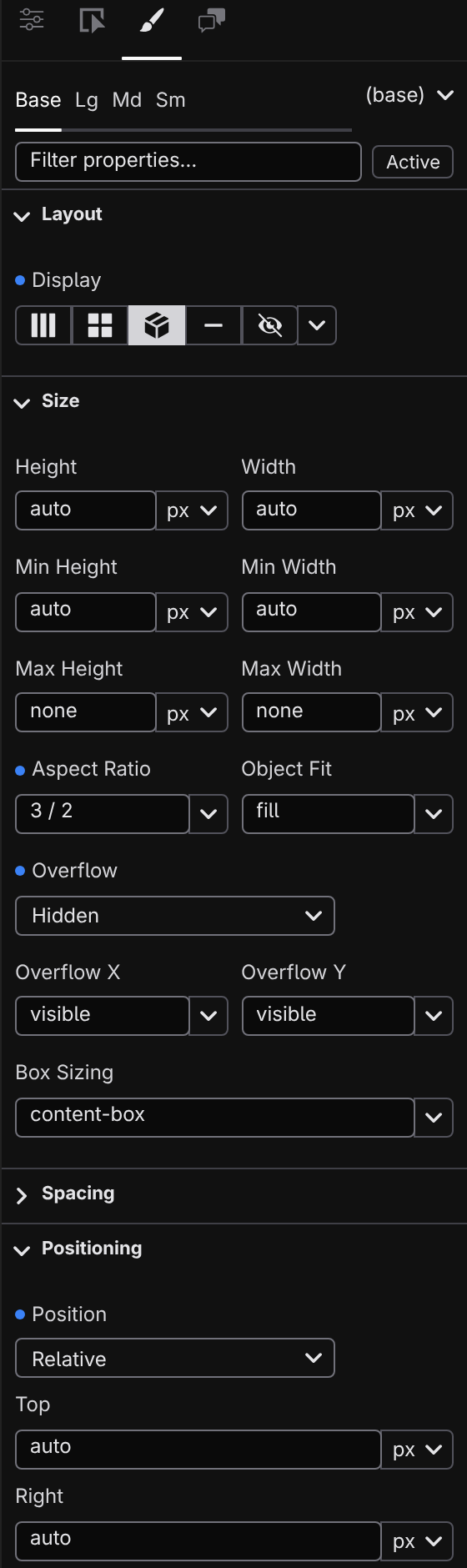

Style inspector

The Style inspector is the Style tab of the Inspector, a full set of visual CSS controls for what you have selected. Select an element in Design mode and click Style (or press ⌘⇧3 ); edits apply to the live canvas as you make them. The dock's header names the tab and what it is pointed at: the element's tag, 6 elements when several are selected, or the document's name when nothing is.

With no file open the tab offers Open a page… ; with a file open and nothing selected it asks you to click anything on the canvas to style it, in the same words the Content and Logic tabs use. Beside the Variables view of the Styles workspace there is no element to style, so the tab says that variables are edited in the view itself and points you to the Elements view for element defaults (see Design tokens ).

The Target Line

A style edit is addressed by several things at once (which element, which breakpoint, which colour scheme, which state), and the line at the top of the tab states all of them before you type:

⌖  h1 · @Tablet · :hover                               [ this element ]

Every segment is a control, and the sentence always reads in the same order: element, breakpoint, colour scheme, state. A glance tells you what changed since you last looked:

• The element : the tag these edits are pointed at. Click it to open the Outline and find the element there.

• The breakpoint : Base , or @Tablet when a breakpoint is active. You choose it on the pane's Context control (or by clicking a canvas panel's header); clicking the segment opens Settings › Contexts , where breakpoints are defined. See Breakpoints .

• The colour scheme : a Dark variant segment joins the line while the Context control forces a scheme your project declares, because edits then land in that scheme's overrides: ⌖ h1 · Base · Dark variant · :hover . It appears at Base only (a breakpoint is always breakpoint-scoped), and setting the control back to Auto returns you to base styles.

• The selector : the last segment, reading base rule for the element's normal look. It is the one segment with a menu of its own: :hover , :focus , or a selector you write. In Project Styles the menu lists the selected element type's own states, such as a :hover and a :visited for links, and choosing one styles that state for every element of the type. See Hover states and selectors .

The scope chip

At the end of the line, a chip states the blast radius of the next keystroke:

The project case adds a warning band under the line: it names how many elements in how many files the edit reaches, and Show affected lists the files with a count each. While the count is still being worked out the band says so; where the project can't be searched it says the number is unknown , never a confident zero.

Where each value came from

Every field label carries a chip that answers one question: why does this box say what it says?

An inherited chip always names where the value came from, so "something is showing through" becomes "Base sets this to 16px; go and look". The value itself still shows as a dimmed placeholder in the field, so you can see what you'd be overriding. The one inherited chip that doesn't take you anywhere is from site tokens : that value lives in the project's site-wide style rather than in the open file, and the Style tab has no page to open for it. Edit it in Design tokens instead.

Collapsed section headers carry the same states as a tally: a heading with dots has something set, inherited, or bound inside it, and hovering reads it out as 3 set here · 2 inherited . So finding your own overrides is a glance down the closed headings rather than a filter that hides two thirds of the panel to answer the same question.

Sections and the filter

Properties are grouped into accordion sections: Layout , Size , Spacing , Positioning , Typography , Background , Border , and Effects . A section that already has values in it opens by itself the first time you meet it, and a section you close stays closed while you work. The filter box narrows the list. Type part of a property's name or label, and every matching section stays open while you filter.

Clicking the accent dot on a section header clears everything set in that section.

Some rows appear only when they're relevant: alignment and gap controls show once the element's display makes them meaningful, for example. A row whose value no longer applies is flagged so you can spot leftovers.

The inputs

Each property gets a control built for it:

• Number + unit : type the number, pick the unit ( px , rem , % , vw , and friends) or a keyword like auto from the attached menu.

• Color : a swatch beside the value, and behind the swatch a picker holding a saturation square, a hue track, an opacity track and your project's color tokens. Picking a token writes the reference, so the value reads var(--color-primary-blue) and follows the token wherever you take it, and the swatch shows the colour the token stands for; moving any of the tracks replaces it with a literal, because that is what moving a picker means. The value box takes anything CSS can read, a named color or a color-mix() included, and keeps it as you wrote it. See Design tokens .

• Font family : type a font stack, or pick one from the list under the field, which shows your project's font tokens first, each named beside its token, and then a set of ready-made stacks. Every row is drawn in its own typeface, so you choose by looking. Picking a ready-made stack saves it as a font token the moment you commit, so the next element that wants it points at the token rather than repeating the stack. The field shows a token by its name, --font-body rather than var(--font-body) , and a stack you type is written as you typed it.

• Keyword lists : a property with a known set of values lists them under the field, opened by its chevron or by ↓ . The field stays typable, because a CSS keyword list is a set of suggestions rather than a closed one: a value the list does not offer is still a value you can write, and pressing Enter commits what you typed unless you arrowed onto a row first. The typography rows draw each value as itself: weights at their weight, styles leaning, transforms applied, decorations drawn, all in the element's own typeface.

• Button rows : Display, direction, wrapping, alignment and text alignment are rows of buttons, one per common value, each drawn as an icon. A handful of values have no icon that would read as them, such as nowrap , and those buttons carry the CSS keyword itself instead, spelled out in full rather than shortened. Hover a button to see the value it writes, click it again to clear it, and open ··· for the values the row has no room for, wrap-reverse among them. From the keyboard, a row is one stop: Tab reaches it and the arrow keys move the choice along it.

Shorthand rows like Padding and Margin take a combined value, or expand with their chevron into per-side fields; border rows expand into width, style, and color. Studio recombines the sides into the shortest form when it writes the value. A shorthand's chip answers for the whole family. It reads set here when the shorthand or any one side is set, and clicking it clears all five at once.

The value source

Beside each property's label sits a value source control naming how that value is produced. For a CSS declaration there are two rungs, because two is what the style format accepts:

• Fixed value : the value you type, the same every time.

• Mixed text : text with ${…} placeholders that fill in from your signals, so a property can follow your data. See Logic .

Click it and a picker opens listing both, each with a line explaining it, and one click puts you on either. There is no cycle to walk through. The same control, with the same words, appears on every bindable field in the Inspector, and each field offers exactly the rungs the document format allows there, which is why fields on the Content tab also offer From data… . Switching back remembers what you had on the rung you left, so a detour costs you nothing.

Several elements at once

Select more than one element in the Outline and the Style tab edits them together: Shift for a range, ⌘ ( Ctrl on Windows) to add one at a time. Fields the selection agrees on show the shared value; where they disagree the chip reads Mixed with the count. Typing into a Mixed field sets every selected element in one go, and the whole batch is a single undo step.

Custom and relative styling

Two sections close the list:

• Custom takes any CSS property by name. Type the property, press Enter , and fill in its value; each row shows the property's browser default as a placeholder. Renaming a property carries each selected element's own value across to the new name.

• Relative Styling lists the nested rules this element already carries: states you have styled, and rules for elements inside it (the rows inside a table, the links inside a nav). Click a rule to drill into it and edit it with the full inspector; + Add opens a dialog where you type a selector to nest under the current rule ( th , :hover , .active ) and click Add . The section appears once there is at least one nested rule to list. The first one comes from the Target Line's selector menu.

Next

• Set element-wide defaults instead of styling one element at a time, with Project Styles .

• Name your colors, fonts, and sizes in Design tokens .
