Working with components

A component is a piece of design you build once and use everywhere: a card, a header, a pricing row. Each use is an instance ; edit the component and every instance follows. This page covers the component workflows on the Design canvas; the bigger picture of what belongs in a component lives in Pages, layouts, components .

Convert a selection into a component

The natural way to make a component is to design it in place first, then promote it:

1. Build the element on the canvas: structure, styles, content.

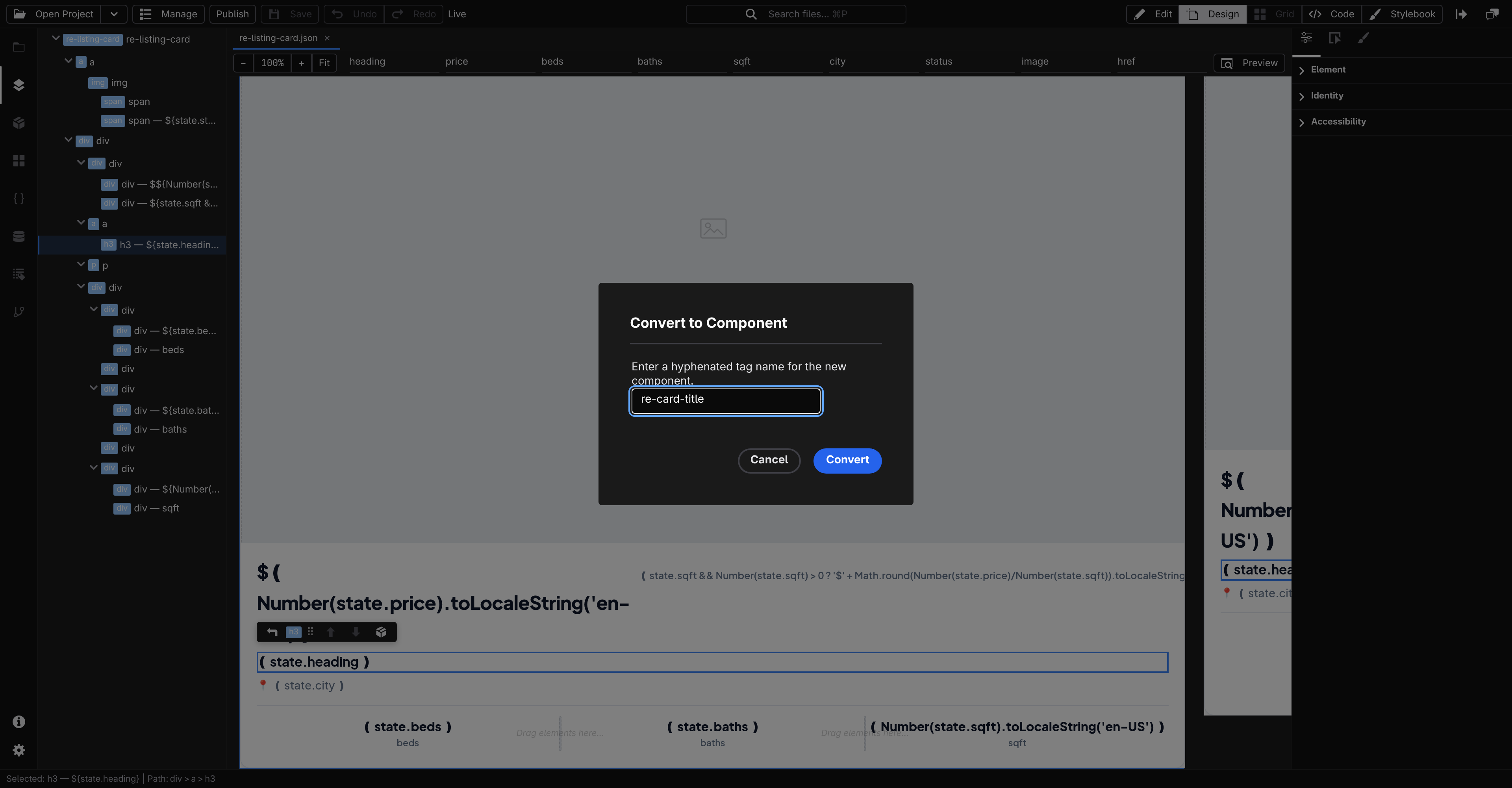

2. Right-click it (on the canvas or in Outline ) and choose Convert to Component .

3. Give it a tag name (lowercase, with a hyphen, like pricing-card ) and click Convert . Studio validates the name as you type and won't let you collide with an existing component.

Studio saves the component as its own file in the project's components/ folder, swaps your selection for an instance of it, and adds it to the Insert palette . Drop more instances anywhere from there. If the component's slots need attention, Studio files it on Problems naming the component file, so it stays listed until you fix it.

To open a component from an instance, right-click the instance and choose Edit Component , or click → Edit definition under Component Settings on the Content tab.

Props: the component's options

Props are the knobs an instance can turn: the card's title, its image, whether it's featured. A component's props come from its state: every plain value you declare in the component's Data panel becomes a prop, with that value as its default. See Logic for declaring state.

On an instance, the Content tab shows a Component Settings section with a fitting control per prop (checkbox, number field, dropdown, media or color picker). Each prop can also be bound : click the value source chip beside its label and pick From data… for a signal, or Mixed text for a value that mixes text and data, so the instance follows live data instead of a fixed setting. It is the same three-rung choice, spelled the same way, that every other bindable row in Studio offers. See Formulas and expressions .

With the component's own definition open, the same section becomes Component Defaults : the values here are the ones the component ships, so a page that sets nothing gets these. There's no from the component badge and no → Edit definition link, because you're already there.

Each prop row also says where its value came from, in the same four-state chip the Style tab uses. It is the same question asked of a second cascade:

• A prop you have filled in on this instance carries an accent set here dot; click it to clear the prop and hand it back to the component.

• A prop you have left alone, where the component declares a default, reads from the component default in amber. Its tooltip states the default, and clicking it opens the component that defines it, so you can read the default rather than guess at it.

• A prop that is bound reads in violet, naming the signal it follows (or a template / a formula when it follows one of those).

• A prop with no value and no declared default draws nothing at all, because a badge on every empty row is noise.

→ Edit definition at the foot of the section opens the component. Below it, a Usage section counts the other places the project places this component ( Used on 2 pages and 1 other file , or Not used yet ) and lists those files; click one to open it. When the count cannot be taken the heading reads Usage · unknown and says so, with a Retry : "we could not check" and "nothing uses this" are answers you must never confuse.

Slots: openings for content

By default an instance renders exactly what the component defines. A slot is a deliberate opening. Add a slot element inside the component definition, and whatever an instance holds as children flows into that opening. Give slots names to offer several openings (a card with an icon slot and a body slot). In Outline , slots show a ▣ badge; hover it for the slot's name. Layouts distribute page content the same way.

Preview with test props

A component file open on its own renders with its defaults, but defaults are often empty. Open the context bar's resolving with popover and you get one field per prop, stacked; type a value to see the component render with it, live on the canvas at every breakpoint. Numbers, true / false , and lists in JSON form are understood as such; anything else counts as text. Each field is also a command, so you can set one by name without reaching for the popover: press ⌘K and run Set Test Value .

Test values are a preview lens only: they're never saved into the component, and clearing a field returns the prop to its default. They pair with the Preview toggle described in Modes and preview .

Next

• Repeat a component once per item of a list with Repeaters .

• Insert instances from the Insert palette .
