The canvas

The canvas is the center of the workspace, where your page renders live. It is the real thing, not a mock-up, and you work on it directly: click to put the cursor in the text and select the block, drag the block bar's handle to rearrange. How it behaves depends on the current mode ; this page covers the interactions shared by the visual modes.

Pan and zoom

In Design and Project Styles the canvas is an open surface you move around:

• Pan with the mouse wheel or trackpad. Hold Shift while scrolling to pan sideways, or drag with the middle mouse button.

• Zoom by holding ⌘ (macOS) or Ctrl (Windows/Linux) and scrolling; the canvas zooms toward your cursor. ⌘= / Ctrl+= zooms in, ⌘- / Ctrl+- zooms out, and ⌘0 / Ctrl+0 resets to 100%.

• The zoom pod floating at the canvas's bottom-right does the same, plus a fit picker offering Fit page , Fit width and Actual size , remembered per document.

Design opens already fitted. Switching into Design or Project Styles scales the canvas down so the whole thing is in view, so a wide layout never lands cut off at the edge of the panel. It never scales up past 100%, and it never overrides you: once you have set a zoom yourself (with the controls, Ctrl -scroll or the chords), that file keeps your zoom for the rest of the session.

In Edit mode the page scrolls like a normal browser page instead of panning, and Ctrl -scrolling zooms the content itself, so the text reflows at the new size, like browser page zoom. In Preview the page scrolls too, and there is nothing to pan or zoom. See Modes . The same goes for every editor that isn't a canvas: Code , the Grid , the Library , an entry form and Project Settings all scroll under the wheel exactly like an ordinary page, including the boxes inside them, the Raw JSON view of project.json for one. What none of them does is zoom: Ctrl -scroll and a trackpad pinch do nothing there, the same as anywhere else in Studio outside the canvas, so a stray pinch never rescales the whole window.

Selecting elements

Click any element to select it. Studio outlines it, the Inspector inspects it, and the status bar shows its position in the page structure, a clickable trail of its ancestors.

That includes the parts of the page that come from its layout . The header and footer render dimmed, under a LAYOUT · layouts/base.json chip, and clicking one selects it and offers Open Layout → in the Inspector. They can't be typed into from here, because they belong to every page that uses that layout; see Layout elements .

⌘ -click (macOS) / Ctrl -click (Windows/Linux) adds an element to the selection or takes it out again. Every selected element keeps a box on the canvas, while the block action bar, the Inspector's single-element controls and the status trail address the one you clicked most recently; the status bar says N selected in front of the trail so the trail is never mistaken for the whole set. Ranges are drawn in the Outline , where a Shift -click covers everything between two rows. The canvas has no rubber-band selection.

You can also move the selection from the keyboard: ↑ and ↓ step between siblings, → steps into the first child, and ← or Esc steps out to the parent. Pressed on the outermost element, Esc clears the selection instead. With nothing selected at all, ↑ or ↓ selects the outermost element, so the first key press always lands somewhere. The full list is in the shortcut reference .

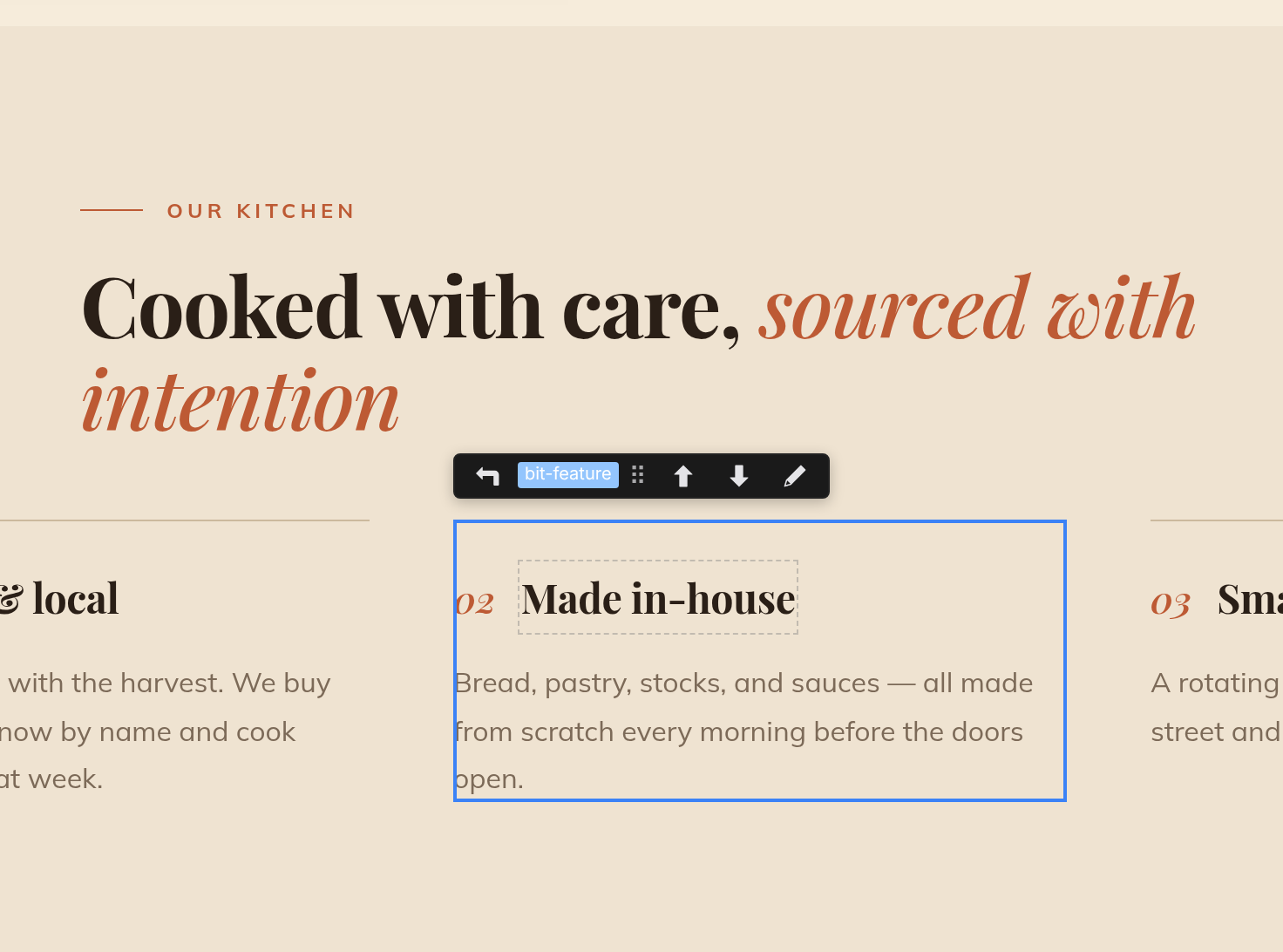

The block action bar

A small floating toolbar appears above the selected element:

• A back arrow selects the parent element.

• The name badge shows what's selected: the element's type or its name. When the element can become something else (a paragraph into a heading, for example), clicking the badge lists the conversions.

• Drag the ⠿ drag handle to move the element somewhere else on the page.

• Move up and Move down arrows swap the element with its neighbors.

• For a component instance, Edit Component opens the component itself; for anything else, Convert to Component turns the selection into a reusable component.

• While you're editing text, formatting buttons (bold, italic, and friends) and an Insert data button join the bar. See Edit mode .

The bar steps aside when you leave the canvas. Click into the Inspector, a panel or the document header and it disappears, so it is never sitting over the control you were reaching for. Your selection stays exactly as it was , which is what the Inspector is editing. It comes back the moment the canvas is in play again: click the element on the canvas, or select anything from the Outline, and the bar is there for it. Panning or zooming the canvas leaves it alone, and so do the bar's own pieces: its ⋮ menu, the link popover and the slash menu.

The bar also carries the structural verbs Duplicate and Delete . It shows a fixed run of them and keeps any further verb, with its name and its shortcut, behind a More block actions button rather than dropping it.

With several elements selected the bar sits on the last one you clicked and names it. Duplicate and Delete act on everything selected, in one undo step; the move arrows act on that one element, because moving several elements one slot along has no single meaning. See Select several at once .

Inserting elements

Three ways to add something to the page:

• The + affordance. Move the pointer between two elements and a + appears at the insertion point. Click it and pick an element from the menu; the new element lands right there, selected.

• The slash menu. While editing text, type / at the start of a line to insert headings, lists, images, buttons, and more without leaving the keyboard. See Edit mode .

• The Insert panel. Run Show Insert from the command palette ( ⌘K / Ctrl+K ) and drag an element or component card onto the canvas.

Drag and drop

You can drag onto and around the canvas from almost anywhere: cards from the Insert panel, rows in the Outline panel, and the ⠿ handle on the block action bar. While you drag, an indicator line shows exactly where the element will land: before, after, or inside the element under the cursor. Drop to commit, or press Esc to cancel the drag with nothing changed.

Files from your desktop work too. Drop an image on empty space and Studio uploads it and inserts it there; drop it on a picture that's already on the page and it swaps that picture's source instead. The target highlights so you can tell the two apart before you let go. An upload that fails says so and stays said, on the Problems list, naming the file it couldn't write. See Media .

The right-click context menu

Right-click any element for the full action list: Copy , Cut , Duplicate , Copy styles and Paste styles , Insert before and Insert after , Wrap in Div , Repeat... (turn the element into a repeating list), Set Title , Edit Component or Convert to Component , and Delete . With something on the clipboard, Paste inside and Paste after appear too.

Right-clicking an element that is already part of a multiple selection keeps that selection rather than collapsing it to the element you aimed at; right-clicking anything else selects it alone. Cut then removes the whole selection in one undo step, putting the element you aimed at on the clipboard. The other rows address that one element: to duplicate or delete a whole selection, use ⌘D and Delete , or the block action bar.

Every row is a command as well as a menu item, so all of them can be run by name from the command palette , with the same wording and the same reason when they are unavailable. A row that can't apply to what you have selected is greyed with that reason rather than hidden: Cut on the page root says it needs an element that isn't the root. See Commands .

Right-clicking empty space around the page gives you the browser's own menu, not this one. There is nothing there to act on, and that margin is where you reach for View Source or Inspect.

Editing text

Click any text to put the cursor there and start typing. Everything about writing on the canvas is covered in Edit mode : formatting, the slash menu, links.
